FIELD STRENGTH METER DVB-T2/S2/C HD TS

Discontinued product

Code 9180008

Model FSM-640

Serie 918

Description
Field strength meter for satellite and terrestrial TV. ALCAD’s FSM field strength meters are equipped with a graphic interface which is particularly user-friendly thanks to its specific designed software for tactile screen.

Applications
Measurement and analysis of terrestrial and satellite TV installations, providing the necessary measurements for digital DVB-T/H, DVB-T2, DVB-S and DVB-S2 signals, as well as analogue measurement in PAL, SECAM and NTSC. Graphic interface showing measurements and satellite dish pointing. Superfast spectrum analysis. Viewing of TV programmes in HD (MPEG-4 H.264). Allows channels to be loaded via its Ethernet and USB ports and saved.

Characteristics
10” LCD TFT panoramic colour touchscreen. Battery with autonomy of 4 hours. Its size and weight make it easy to handle, also includes a backpack for transport. Protective cover against bumps and dirt.

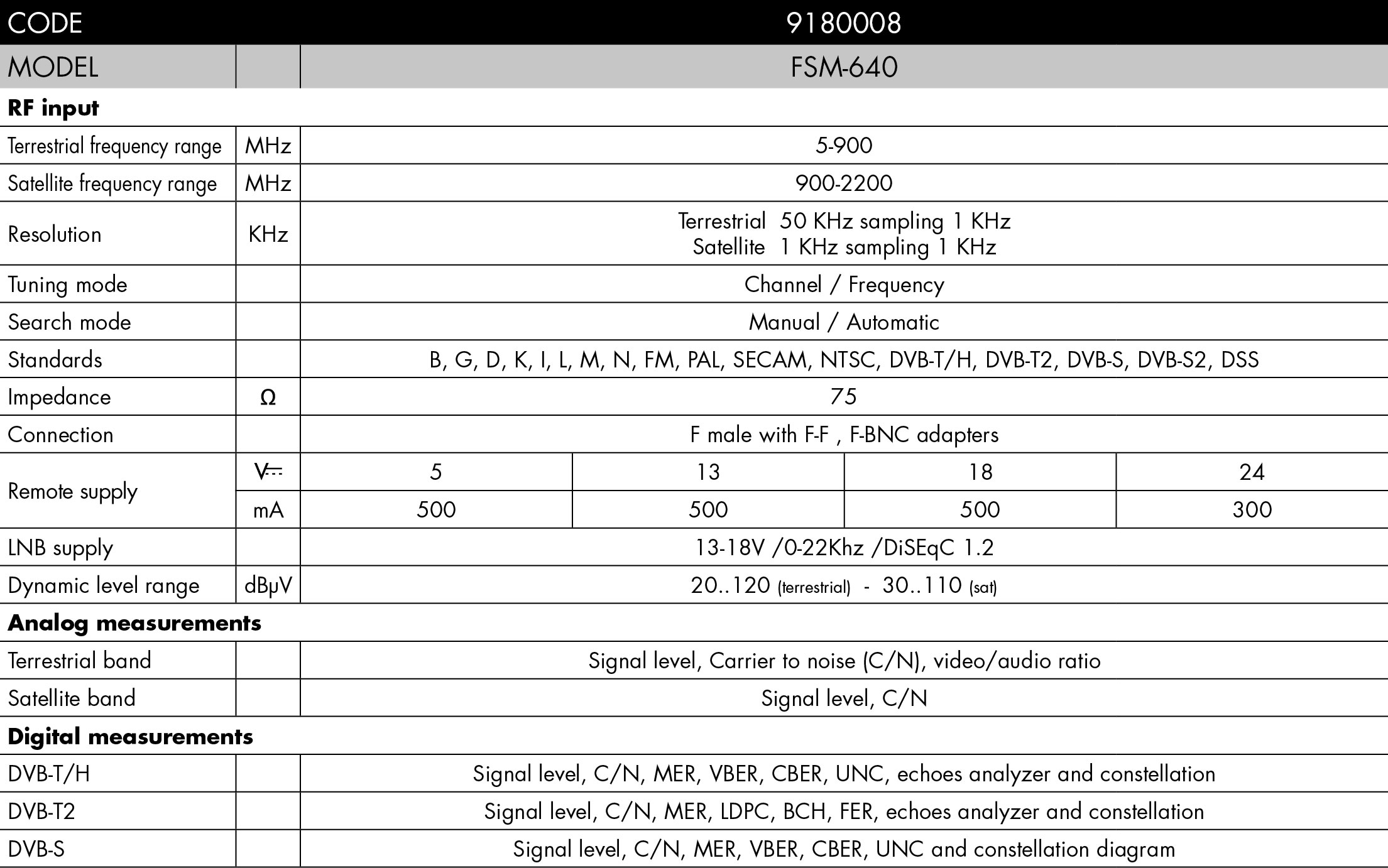

Technical specifications
