Multiband amplifiers


Discontinued Product

Kod 9040118

Model CA-541

Seriler 904

Broadband amplifier for head-end, with several inputs and different frequency configurations, compatible with the transmission of LTE mobile telephone signals The built-in power supply unit can feed up to five preamplifiers automatically. Output test-point to adjust the installation without having to disconnect the TV signal. Available on request in 125 and 240 V~.

Large-scale collective digital and analogue terrestrial TV installations which are affected by the transmission of LTE mobile telephone signals. Suitable for installations where the channels of each band are received at similar levels. Adjustment by means of regulators which control the gain at each input. Characteristics Made from zamak and galvanised steel plate to provide maximum shielding. Independent housings for the power supply unit and the high frequency circuit Input and output connectors in the lower part facilitate installation. F-type connectors for screwing on or crimping.

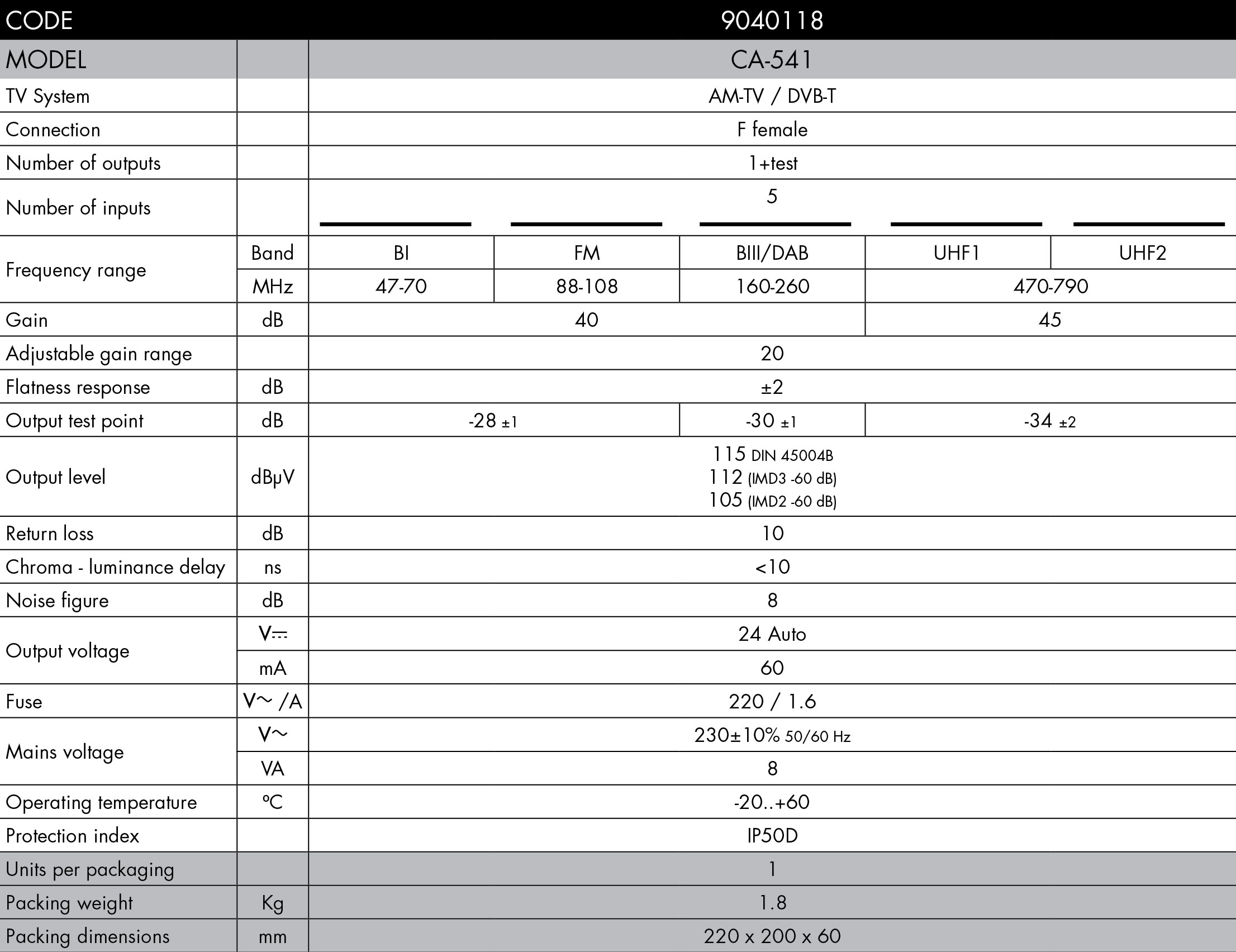

Teknik özellikler
