Tap-offs and splitters-Shielded Outlet units & access points

IF TERMINAL OUTLET, 2 dB, 3 CONNECTORS

Kod 9070086

Model BS-102

Seriler 907

Description
Outlets for terrestrial and satellite TV with three male IEC connectors, an IEC female connector and an F-type female connector. They cover frequencies up to 2,300MHz. They allow a feed path via the female F-type connector to the input.

Applications
Outlets for terrestrial and satellite TV with three male IEC connectors, an IEC female connector and an F-type female connector. They cover frequencies up to 2,300MHz. They allow a feed path via the female F-type connector to the input.

Characteristics
Shielded zamak and metal plate chassis. Connection of the coaxial cable by means of screw terminal. Includes TV/R/SAT frontplate, surface box and screws for fixing to a wall.

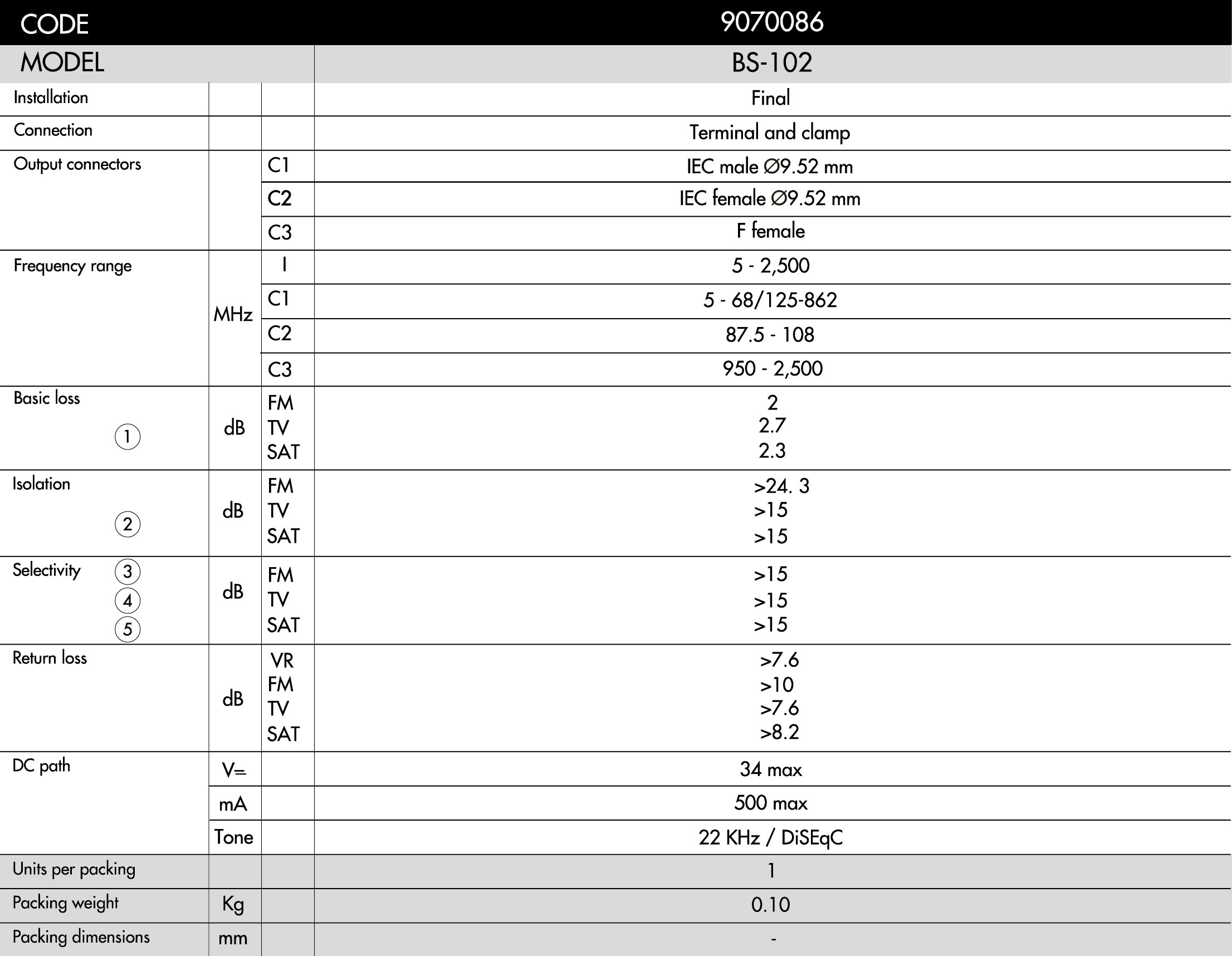

Teknik özellikler
