Modular amplifiers for terrestrial TV

DVB-S/S2 DVB-C DOUBLE TRANSMOD DiSEqC

Kod 9120217

Model TQ-542

Seriler 912

Description
Transmodulator of free-to-air satellite digital television services o terrestrial digital television with DiSEqC. Each module selects the free-to-air services of two DVB-S/S2 satellite transponders and includes them in a DVB-C channel. Programmable using PC software and a wireless programmer.

Applications
Collective terrestrial digital television installations where it is necessary to distribute FTA satellite television services while avoiding the installation of satellite receivers. Allows channels from different satellites to be selected thanks to its DiSEqC ontrol. Compatible with all collective TV installations since the channels can be distributed throughout the 47-862 MHz band.

Characteristics
Two independents tuners. Automatic error-detection system hich greatly reduces maintenance work on the installation. Generated output channel of outstanding quality. Zamak chassis with metal side panels. F-type connectors. The equipment can be ssembled quickly and easily.

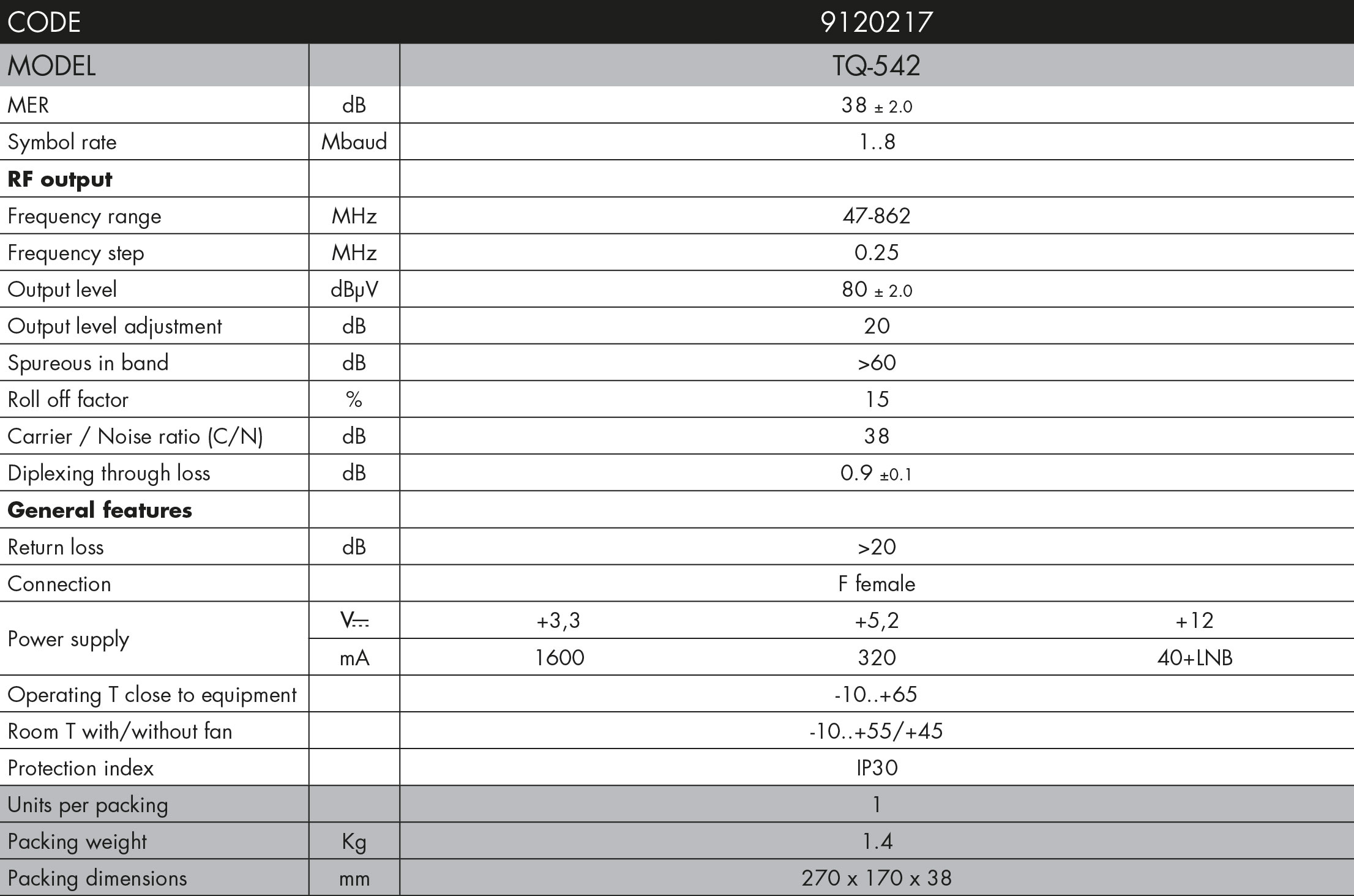

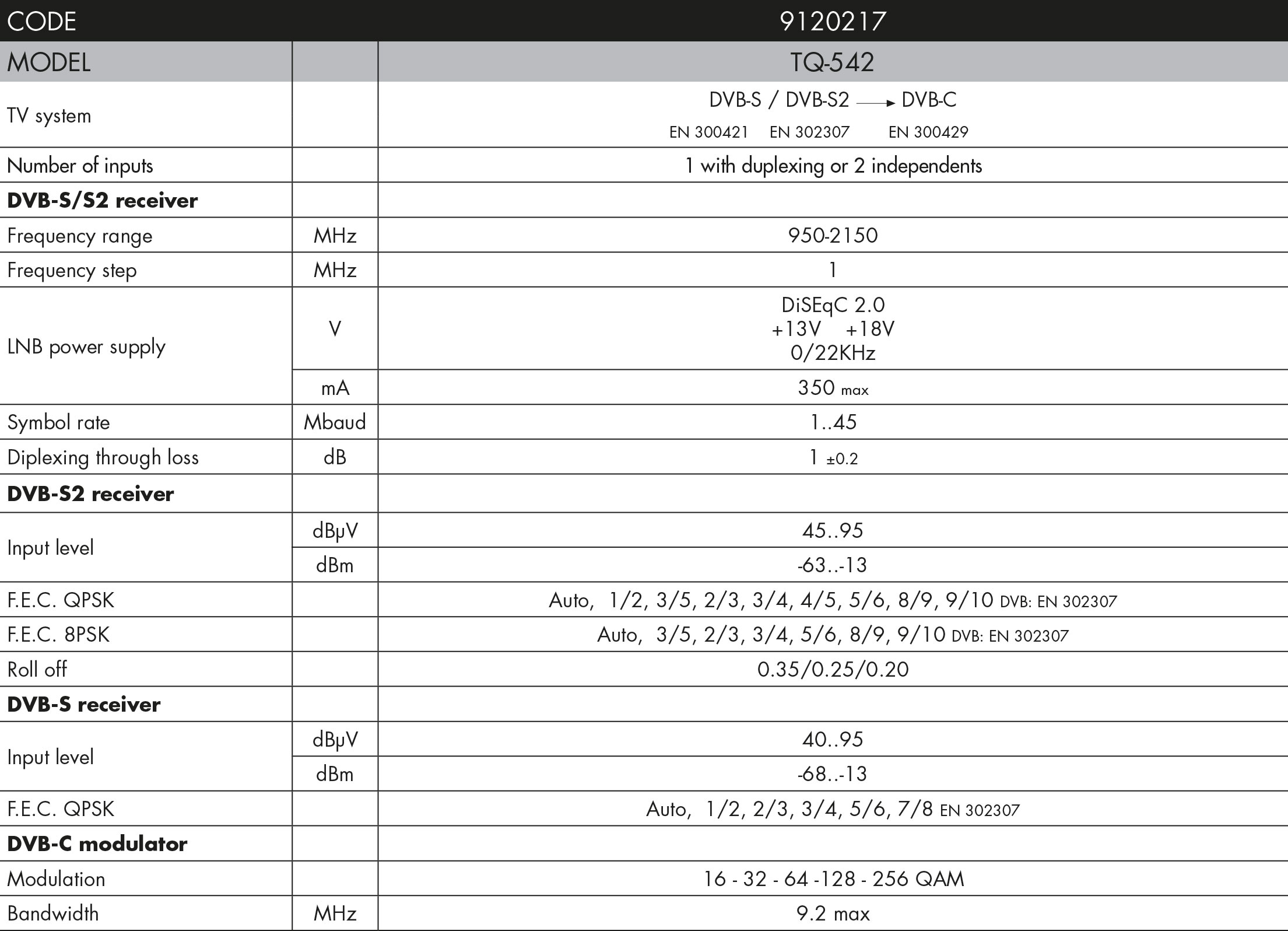

Teknik özellikler
