Modular amplifiers for terrestrial TV

TT-312 FRANSAT MODULE

Discontinued product

Code 9120214

Model TT-904

Serie 912

Description
Transmodulator for Fransat encrypted satellite digital television services to terrestrial digital television with DiSEqC. Each module selects the services of a DVB-S/S2 satellite tr ansponder and incluyes them in one or two DVB-T channels. Equipped with a Common Interface slot, a Fransat Pro CAM and subscriber’s card. Programmable using PC software and a wireless programmer.

Applications
Collective terrestrial digital televisi on installations where the aim is to distribuye Fransat encrypted satellite te levision services while avoiding the installation of satellite receiver s. Allows channels from different satellites to be selected thaks to its DiSEqC control. Compatible with all collective TV installations since the channels can be distributed throughout the terrestrial band.

Characteristics
Automatic error-detection system which greatly reduces maintenance work on the installation. Generated output channels of oustanding quality. Zamak chassis with metal side panels. F-type connectors. The equipment can be assembled quickly and easily.

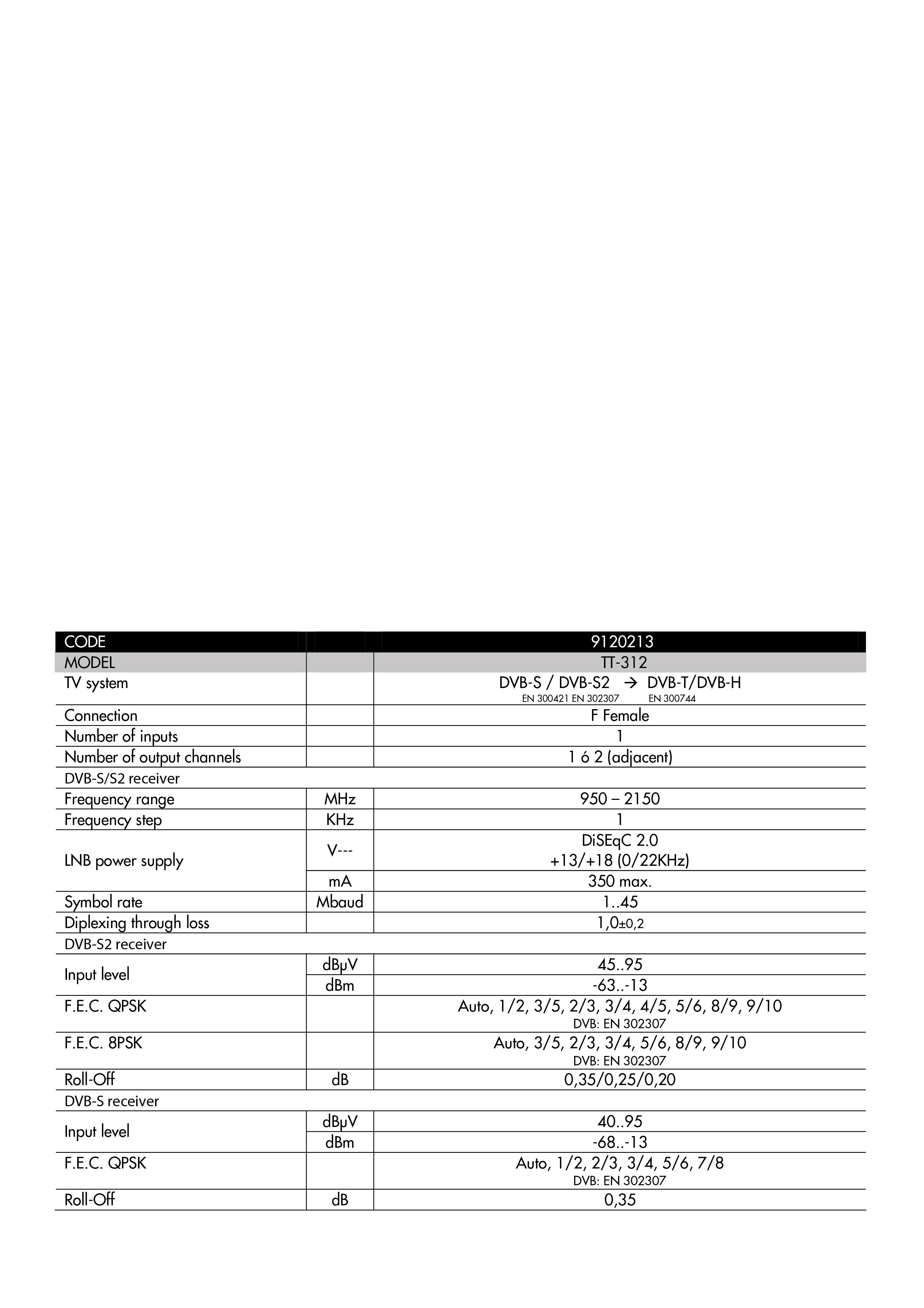

Technical specifications
