Antenna Multiplexers and filters

MULTIPLEXER UHF-UHF-VHF/FM MAST

Code 9020042

Model MM-307

Serie 902

Description
Multiplexers for masts, or by bands, of three inputs. They mix the signals from several antennas in a single coaxial cable.

Applications
Individual digital and analogue terrestrial TV installations. In installations where the reception levels are adequate (60 to 75 dBµV) the signals of all the antennas can be combined to distribute them in the building with a single coaxial cable.

Characteristics
Shielded zamak chassis, covered by an ABS plastic box for outdoor use. Fixed to the mast by means of a polyamide clamp. F-type connectors. Supplied in individual or multiple packs.

Accessories
9120039 CM-004 Male F connector for Ø6.6mm coaxial. 9080023 MC-302 Male F connector for RG-6 coaxial, Ø7.0 mm.

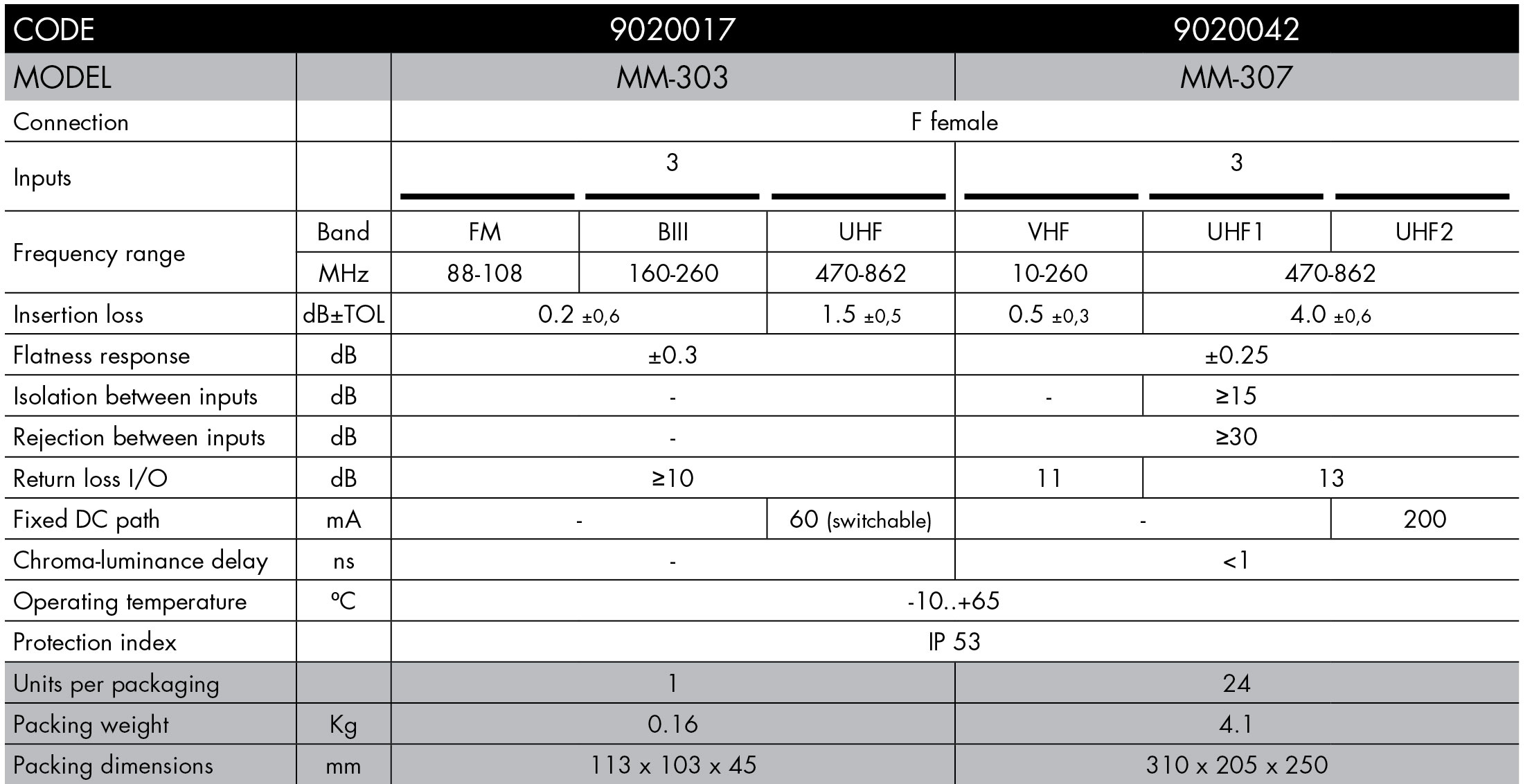

Technical specifications
