Modular amplifiers for terrestrial TV

DVB S2-QAM TRANSMODULATOR TS PROCESSING

Discontinued product

Code 9120150

Model TQ-532

Serie 912

Description
Transmodulator of FTA satellite digital television services to terrestrial digital television with DiSEqC. Each module selects the free-to-air services from a DVB-S/S2 satellite transponder and includes them in a DVB-C channel. Programmable using PC software and a wireless programmer.

Applications
Collective digital cable TV installations where the aim is to distribute FTA satellite television services while avoiding the installation of satellite receivers. Allows channels from different satellites to be selected thanks to its DiSEqC control. Compatible with all collective TV installations since the channels can be distributed throughout the 47-862 MHz band.

Characteristics
Automatic error-detection system which greatly reduces maintenance work on the installation. Generated output channel of outstanding quality. Zamak chassis with metal side panels. F-type connectors. The equipment can be assembled quickly and easily.

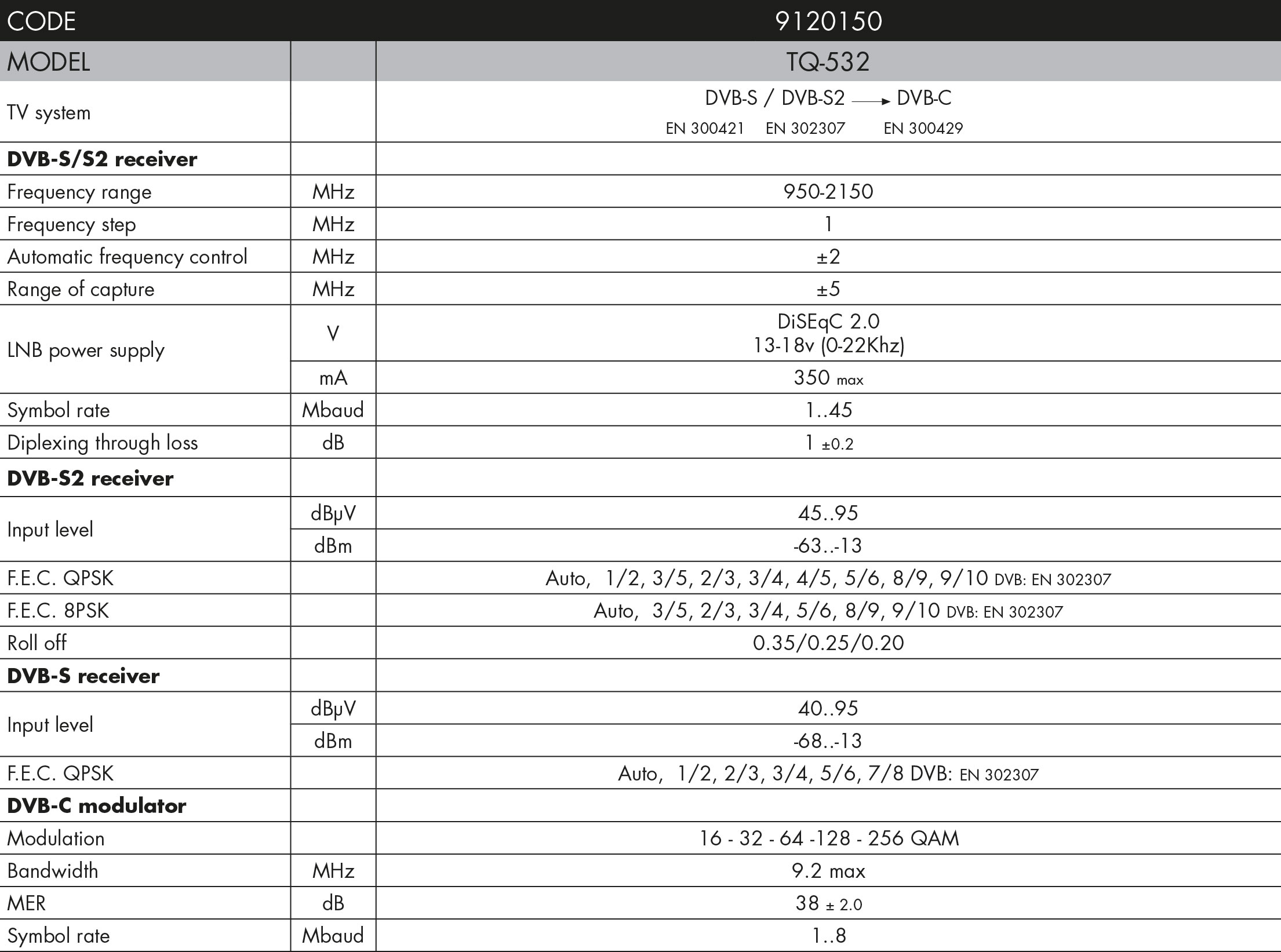

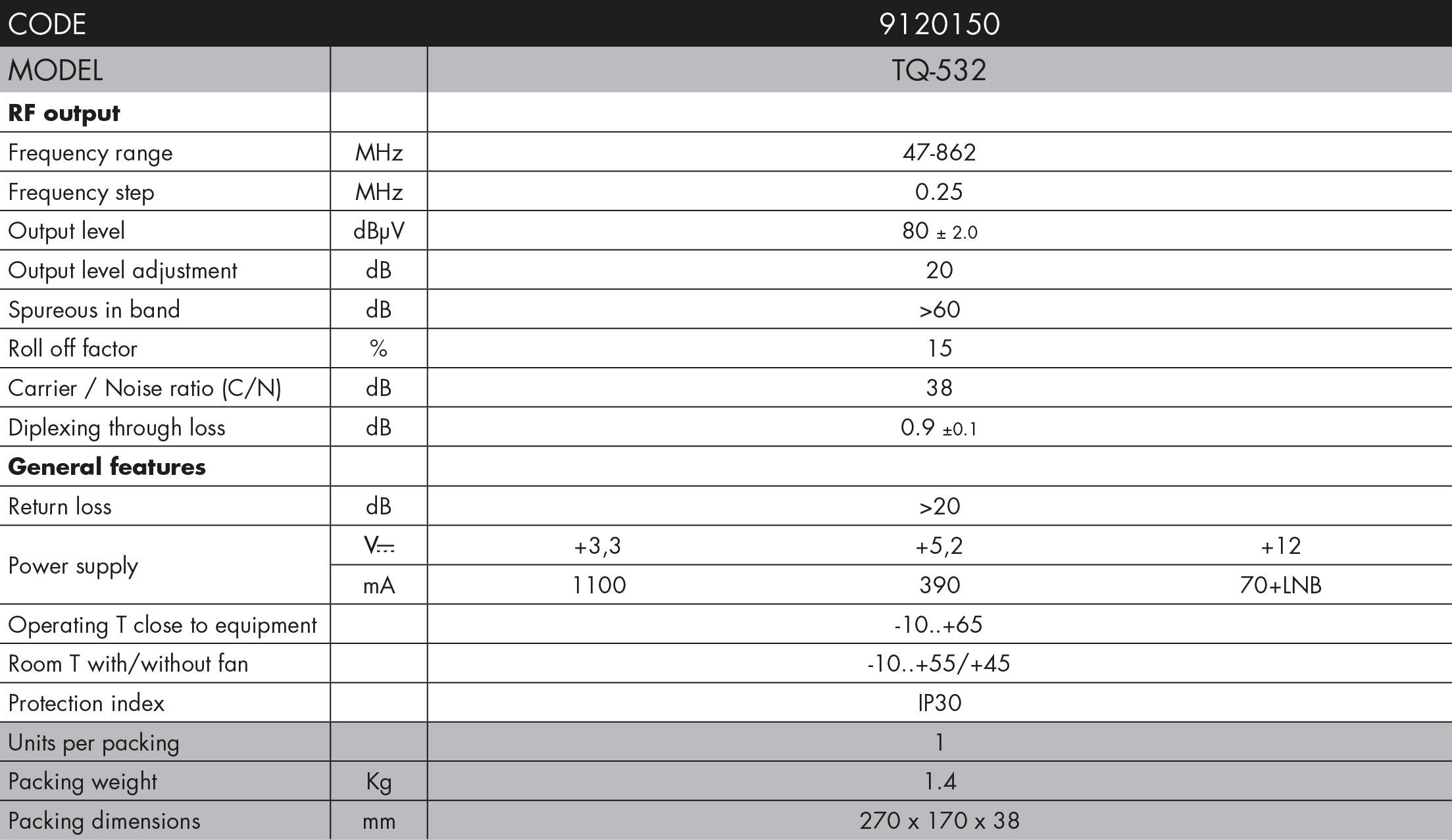

Technical specifications
