Modular amplifiers for terrestrial TV

DIGITAL MODULATOR HDMI DVB-T

Discontinued product

Code 9120224

Model DMH-101

Serie 912

Description
Digital modulator designed to generate a digital terrestrial TV channel in DVB-T from one HDMI signal. It can be programmed using PC software and a wireless programmer.

Applications
Collective TV installations where it is necessary to generate a DVB-T channel containing a service generated locally from SAT receivers, Blu-Ray players, PC or surveillance cameras. Compatible with all collective TV installations since the channels can be distributed throughout the 47 to 862MHz band.

Characteristics
MPEG4 AVC Video encoder. Outstanding quality of the generated output channel. HDMI signal input. Zamak chassis with metal side covers. F-type connectors.

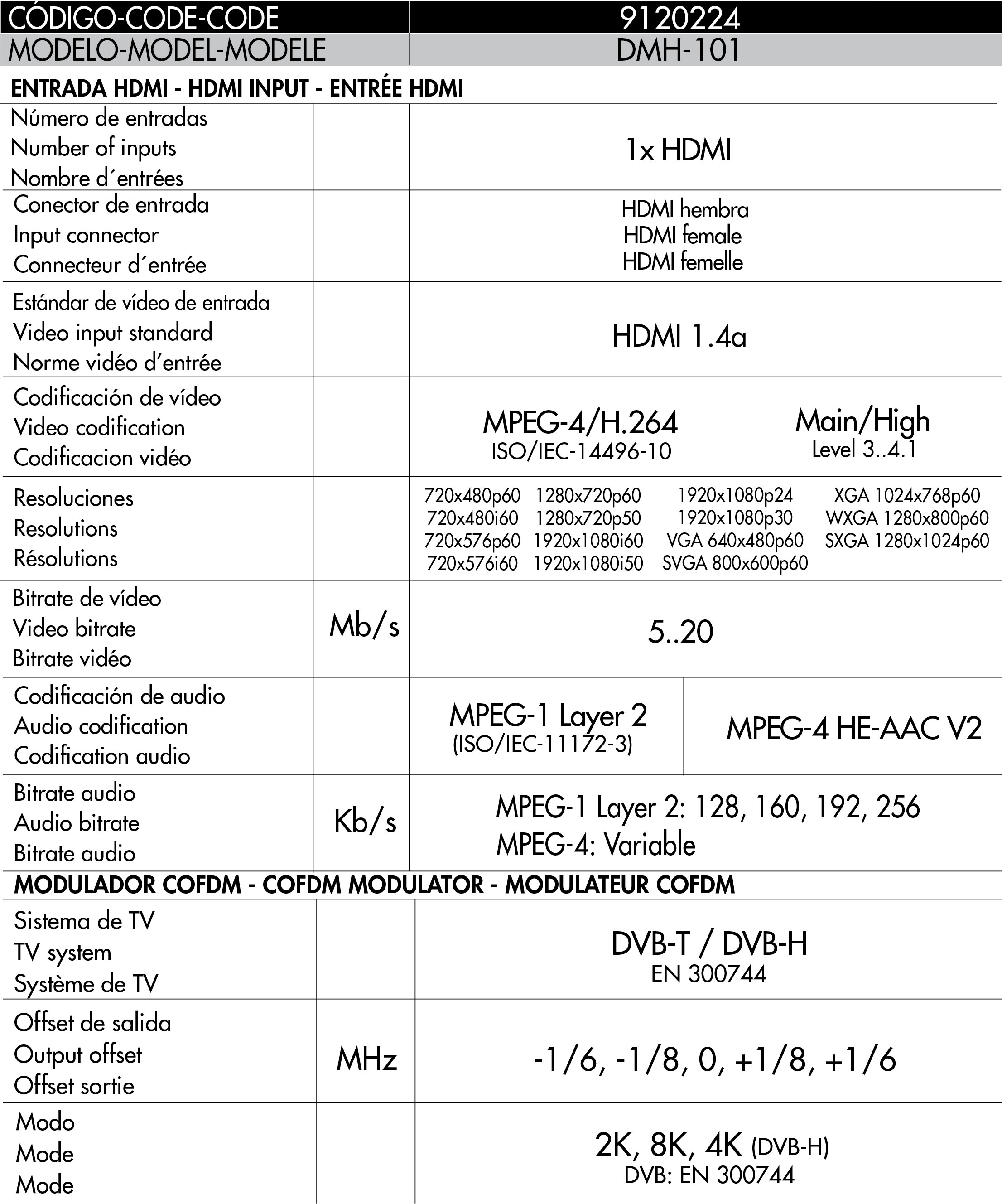

Technical specifications
